Get the right look with Masada cladding

Rusticated and Traditional Cladding Colours Available For Order

Resene Colour Match Palette

Masada Weatherboard has been matched to the below Resene colours for your convivence of matching paint colours. When ordering Masada please use our codes as above.


Half Dutch White


Half Dutch White - #fbf0d6


Quarter Rice Cake - #f6f4ed
Quarter Rice Cake


Silver Ash



Linen          - #bab7a2


Quarter Tapa


Quarter Tapa - #a3a49c

Arctic White

I.P.T Arctic White
I.P.T Arctic White

Traditional Cladding

Front View

Front View

Front Angled View

Front Angled View

Lateral View

Lateral View

Lateral Angled View

Lateral Angled View

Masada is eco friendly, too

The vinyl used in Masada is completely non-toxic and incredibly strong.

Extensive tests from international organisations such as the U.S. Food and Drug Administration, U.S. National Fire Protection Association, American National Standards Institute, and the European Commission have confirmed uPVC vinyl as a non-toxic product. Unlike many cladding products, Masada is 100% recyclable.

So when the time eventually comes to replace the cladding, it's reassuring to know there will be minimal environmental damage.

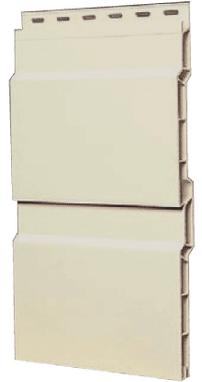

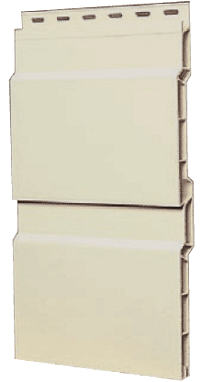

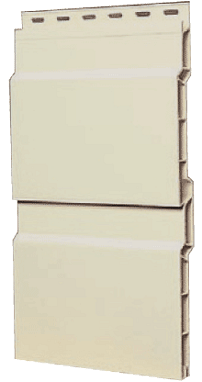

D5 Building Boards
D5 Building Boards

Technical details for D5 Masada weatherboard enthusiasts (or builders)

  • Section D5 Board
  • Length (m) standard 5.8
  • Cover Width (mm) D5 board 250
  • Weight (kg/m2) 4.4
  • Coverage per board (m2) 1.45
  • Thermal Resistance (R) 0.3
  • Thermal Conductivity (K) 0.015
  • Thermal Expansion mm/m @ 55°C 2.5
  • Sound Transmission Class (single wall) 20
  • Sound Transmission Class (double wall) 36
  • Static Design Pressure (kPa) 3.2
  • Wind Load Testing (m/sec) 57
  • Wind Gust Capacity (max kph) 225

Support your weatherboard with Masada Soffit

Along with our D5 Masada weatherboards, we also offer our state-of-the-art Masada soffit for eave linings.

Like the D5 board, the soffit board is UV protected, lightweight and easy to install. And best of all it is maintenance free! No need to ever paint!

Masada soffit is available in white. Standard order is 2600 x 250mm. Masada Soffits can be made to order in customizable lengths

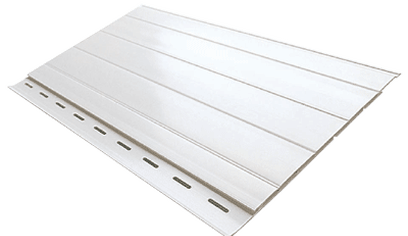

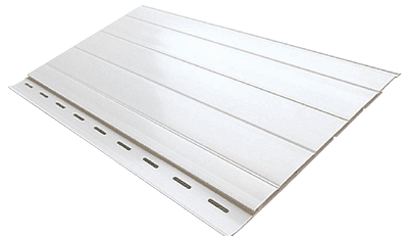

Soffit Under-Eaves
Soffit Under-Eaves
